Visualization of Polyhedra with Virtual Reality (VR) in A-frame

author: Paulo Henrique Siqueira - Universidade Federal do Paraná
contact: paulohscwb@gmail.com
versão em português

Star kites

The polyhedra shown on this page are formed by kites, with some vertices coinciding with the polyhedra of Plato and Archimedes. The faces of the Stars kites are congruent, determining monohedral solids. The symmetries of faces, edges and vertices are the same as those of the respective polyhedra of Plato and Archimedes.
This work shows the Stars kites, modeled for viewing in Virtual Reality. The numbers of vertices Vk, edges Ek and faces Fk have the following relation to the numbers of vertices V, edges E and faces F (n sides) of Archimedes and Plato polyhedra:

Ek = 3·E; Vk = F + E + V; Fk = n·F.

3D Models  |  Home

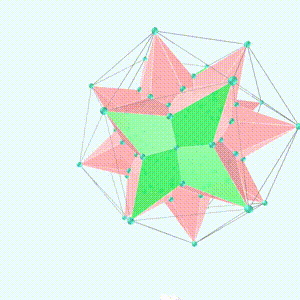

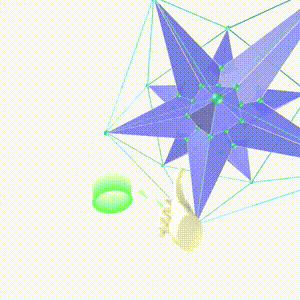

RV star kitesRV star kites

3D models

1. Cube

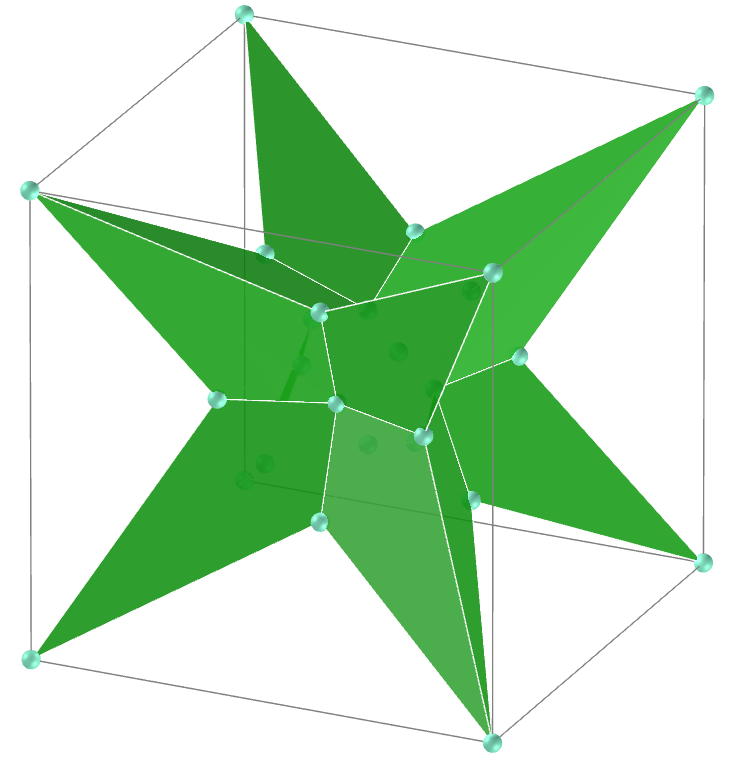

Cubic star kites
We build a Star with kites with some vertices coinciding with the vertices of the cube: Cubic star kites.
faces: 24 | edges: 36 | vertices: 26

2. Octahedron

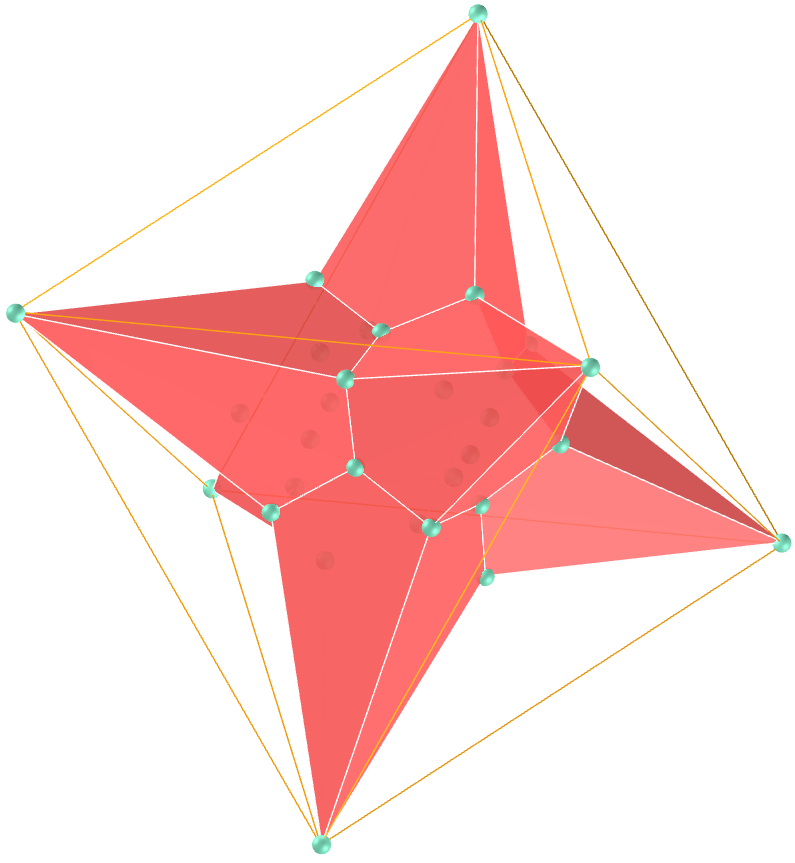

Octahedral star kites
Octahedral star kites.
faces: 24 | edges: 36 | vertices: 26

3. Icosahedron

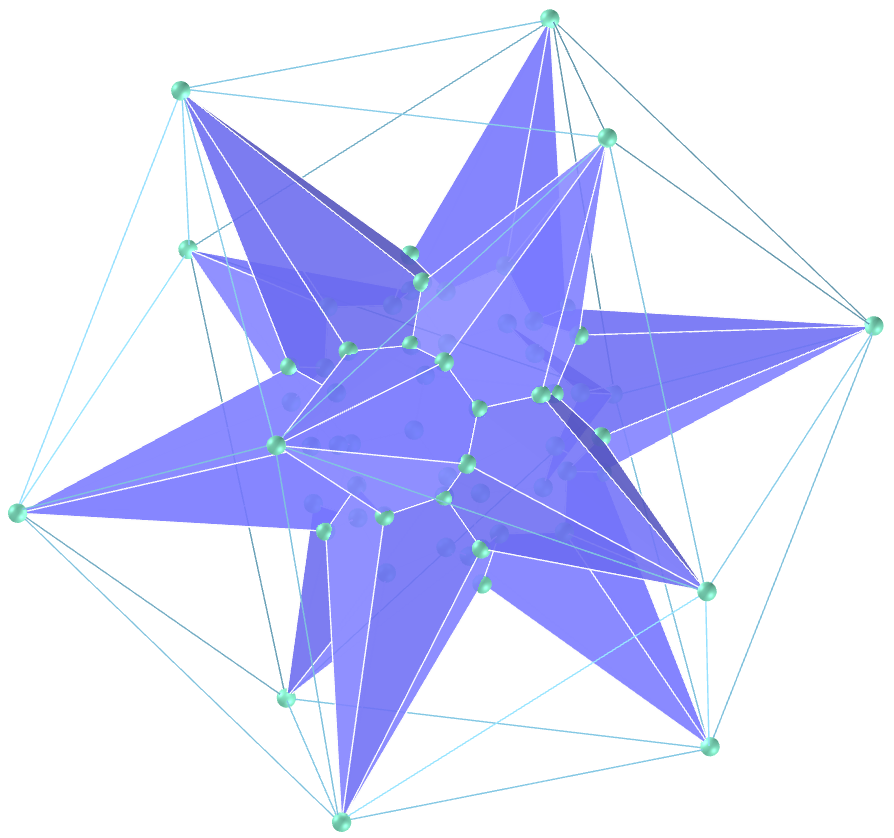

Icosahedral star kites
Icosahedral star kites.
faces: 60 | edges: 90 | vertices: 62

4. Dodecahedron

Dodecahedral star kites
Dodecahedral star kites.
faces: 60 | edges: 90 | vertices: 62

5. Tetrahedron

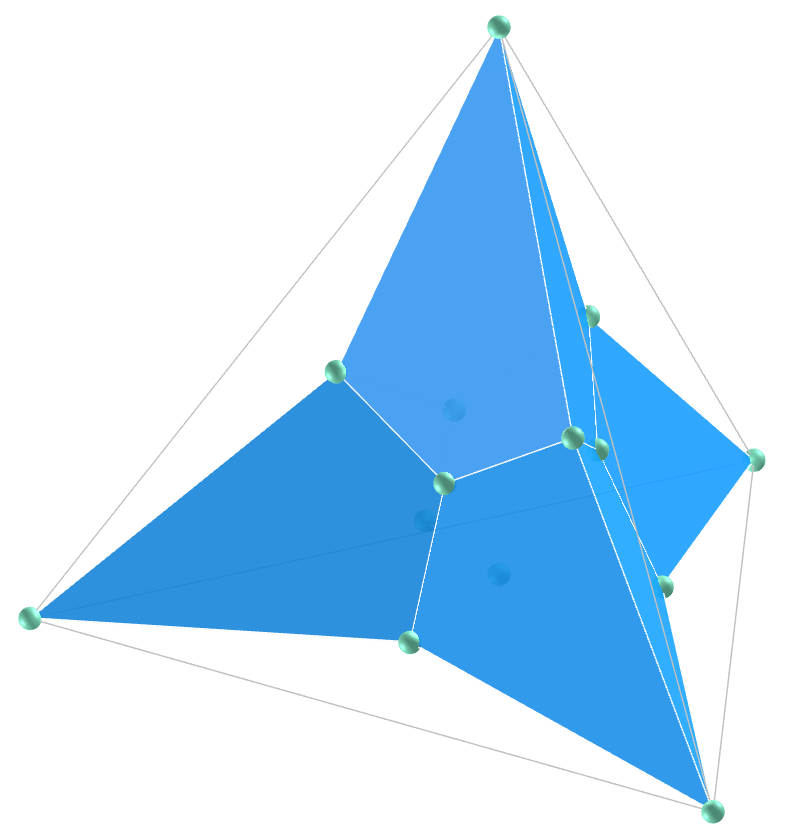

Tetrahedral star kites
Tetrahedral star kites (also called trapezohedral tristetrahedron).
faces: 12 | edges: 18 | vertices: 14

6. Cuboctahedron

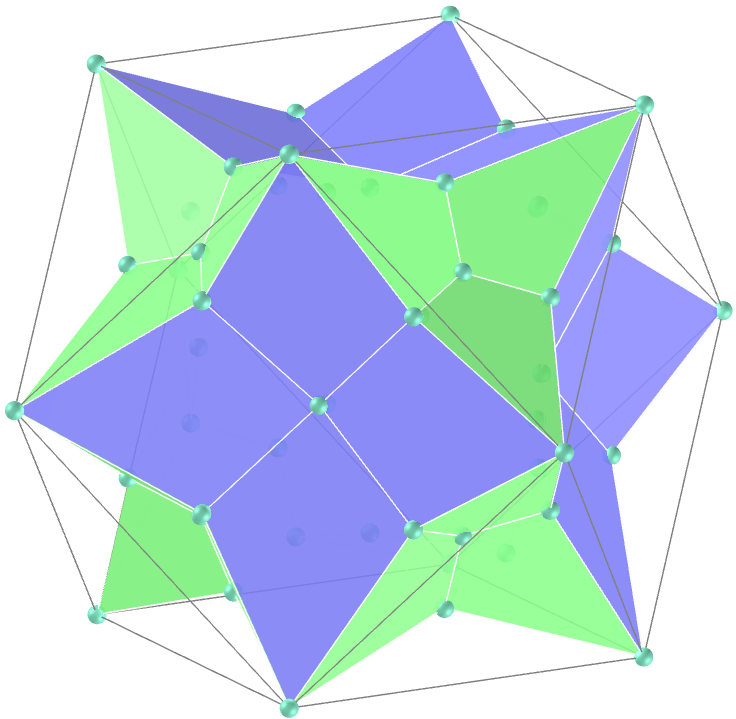

Cuboctahedral star kites
Cuboctahedral star kites.
faces: 48 | edges: 72 | vertices: 50

7. Icosidodecahedron

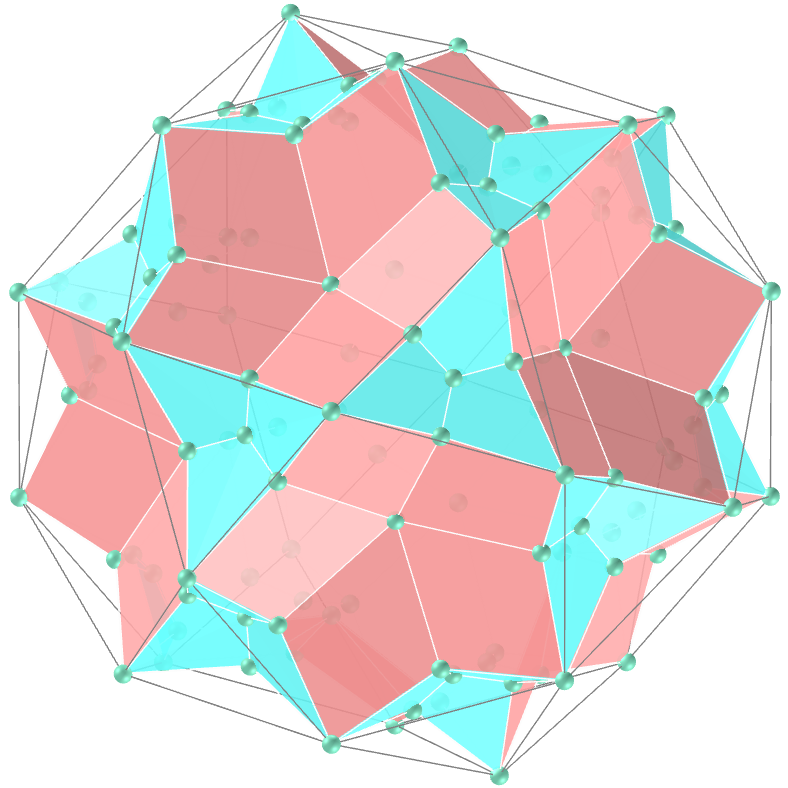

Icosidodecahedral star kites
Icosidodecahedral star kites.
faces: 120 | edges: 180 | vertices: 122

8. Rhombicosidodecahedron

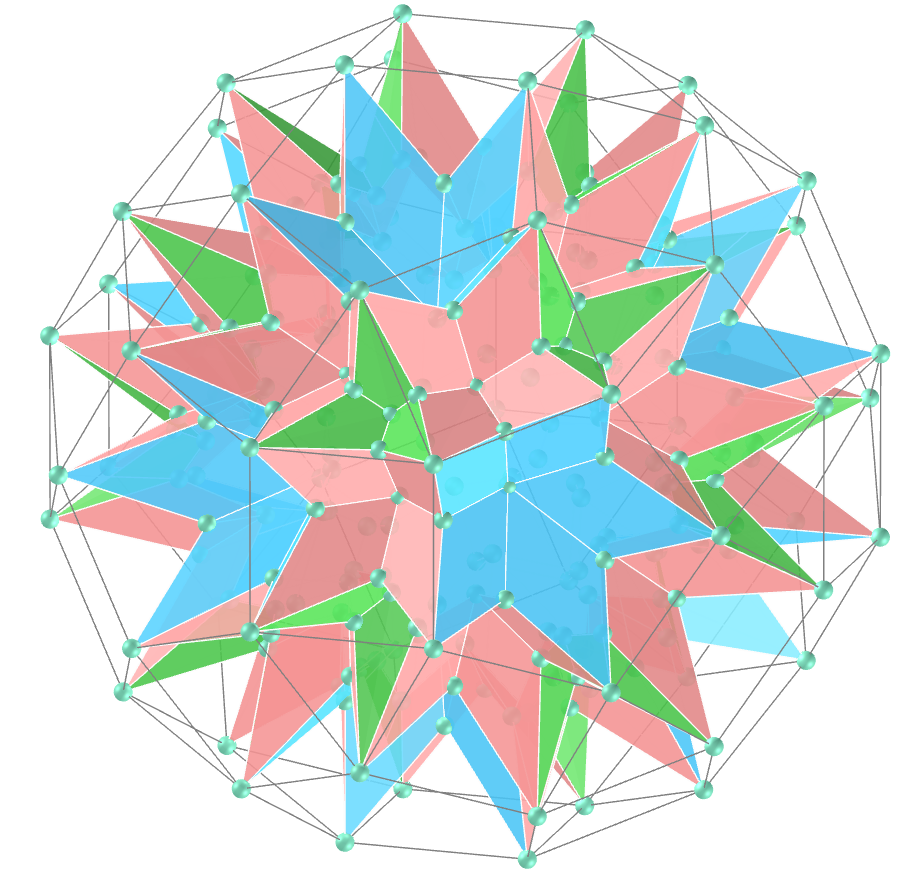

Rhombicosidodecahedral star kites
Rhombicosidodecahedral star kites.
faces: 240 | edges: 360 | vertices: 242

9. Rhombicuboctahedron

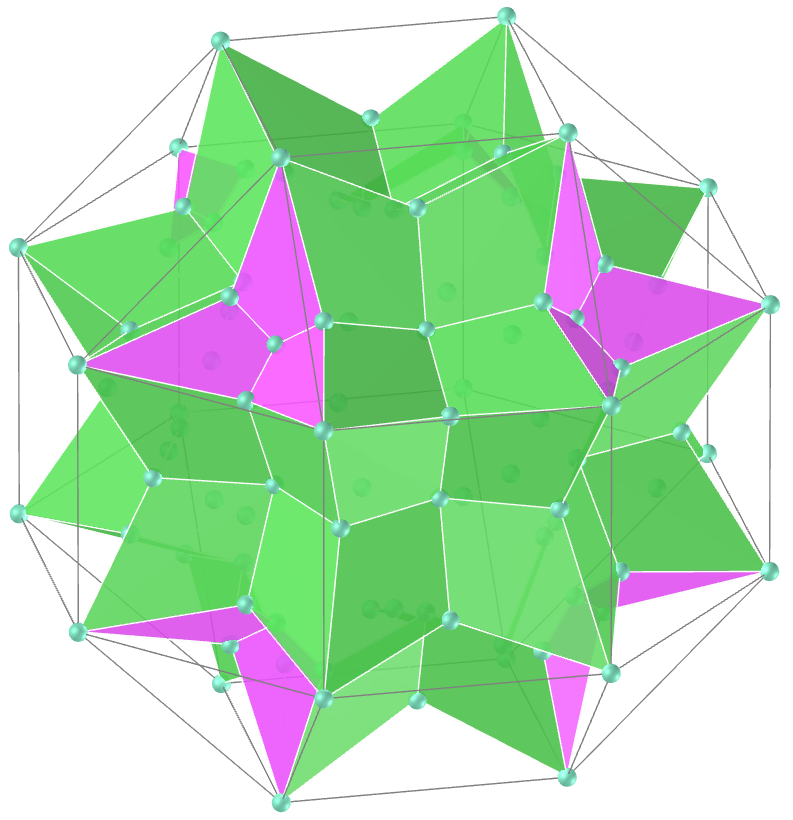

Rhombicuboctahedral star kites
Rhombicuboctahedral star kites.
faces: 96 | edges: 144 | vertices: 98

10. Snub Cube

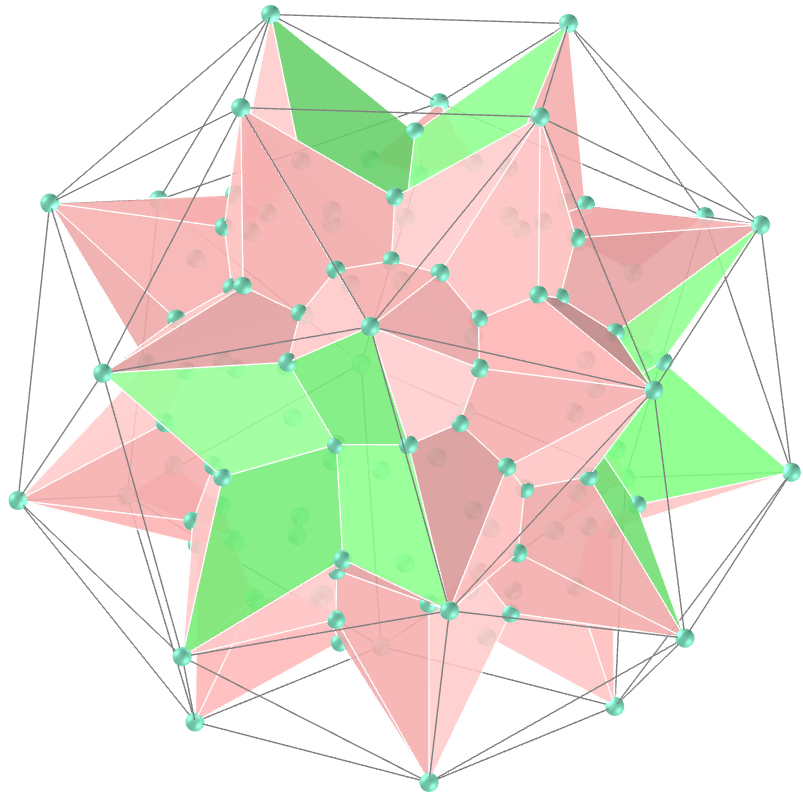

Snub cube star kites
Snub cube star kites.
faces: 120 | edges: 180 | vertices: 122

back to top

11. Snub Dodecahedron

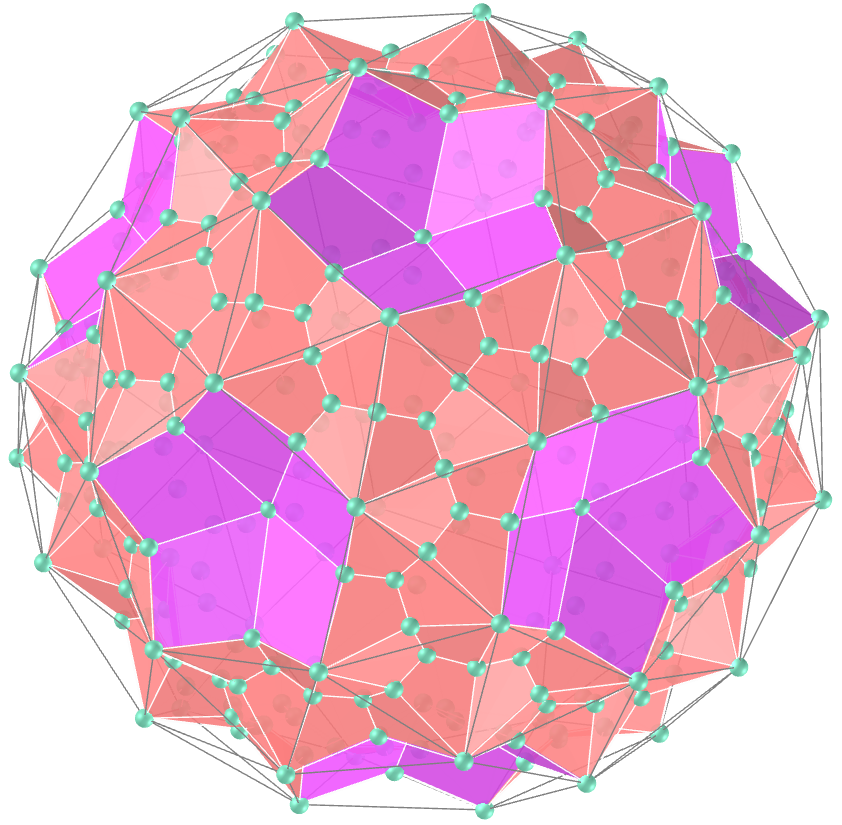

Dodecahedron snub star kites
Dodecahedron snub star kites.
faces: 300 | edges: 450 | vertices: 302

12. Truncated Cube

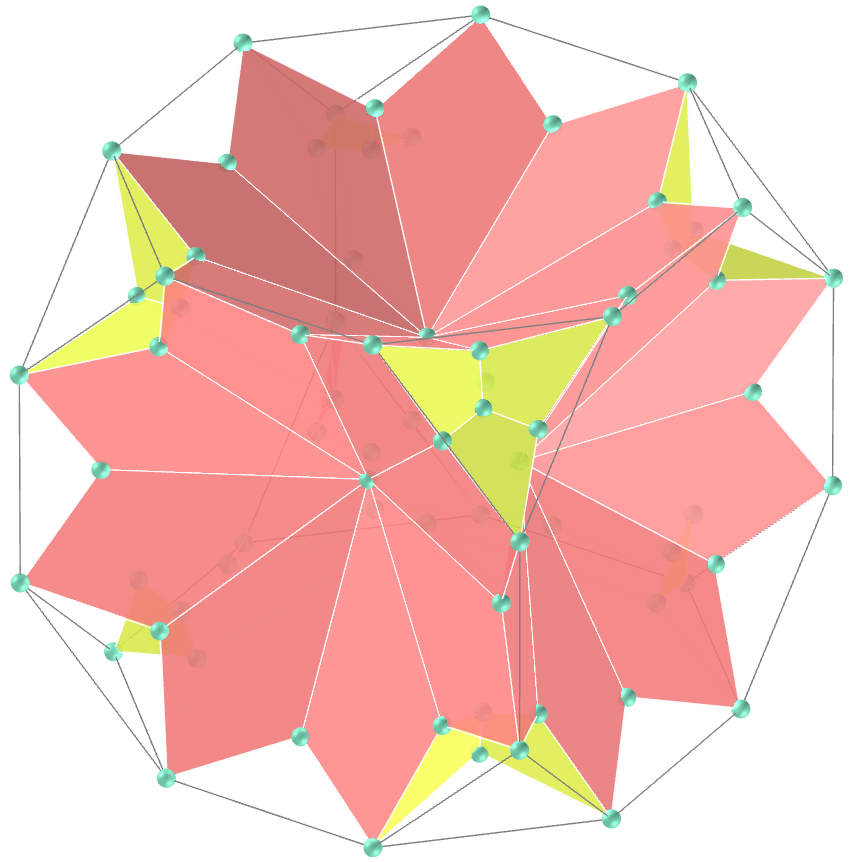

Truncated cube star kites
Truncated cube star kites.
faces: 72 | edges: 108 | vertices: 74

13. Truncated Cuboctahedron

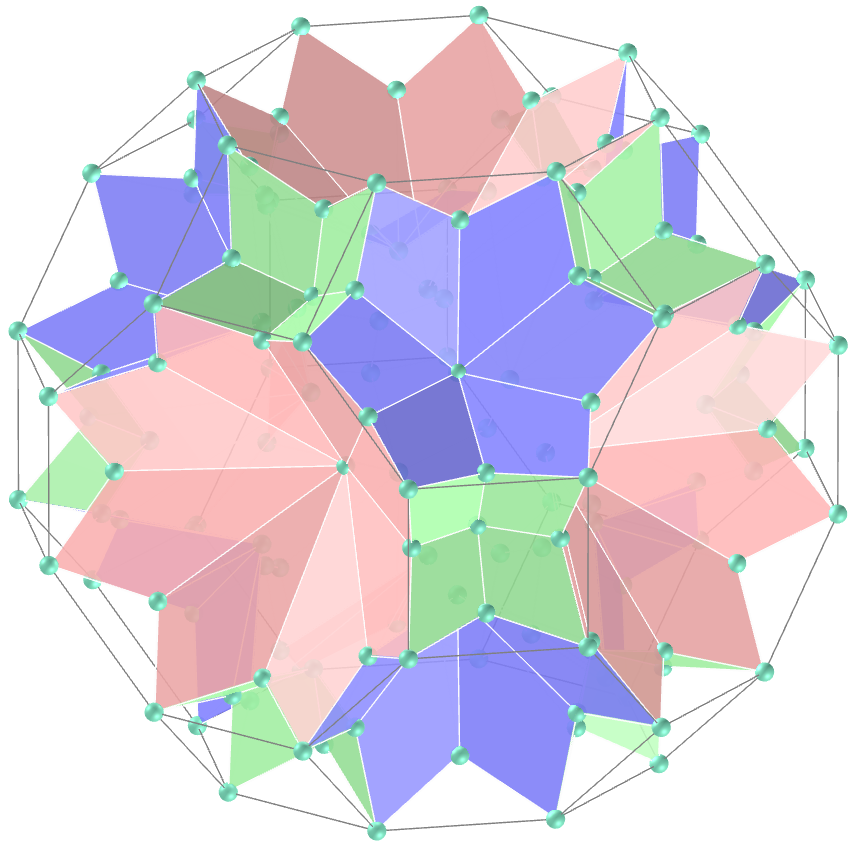

Truncated Cuboctahedron star kites
Truncated cuboctahedron star kites.
faces: 144 | edges: 216 | vertices: 146

14. Truncated Dodecahedron

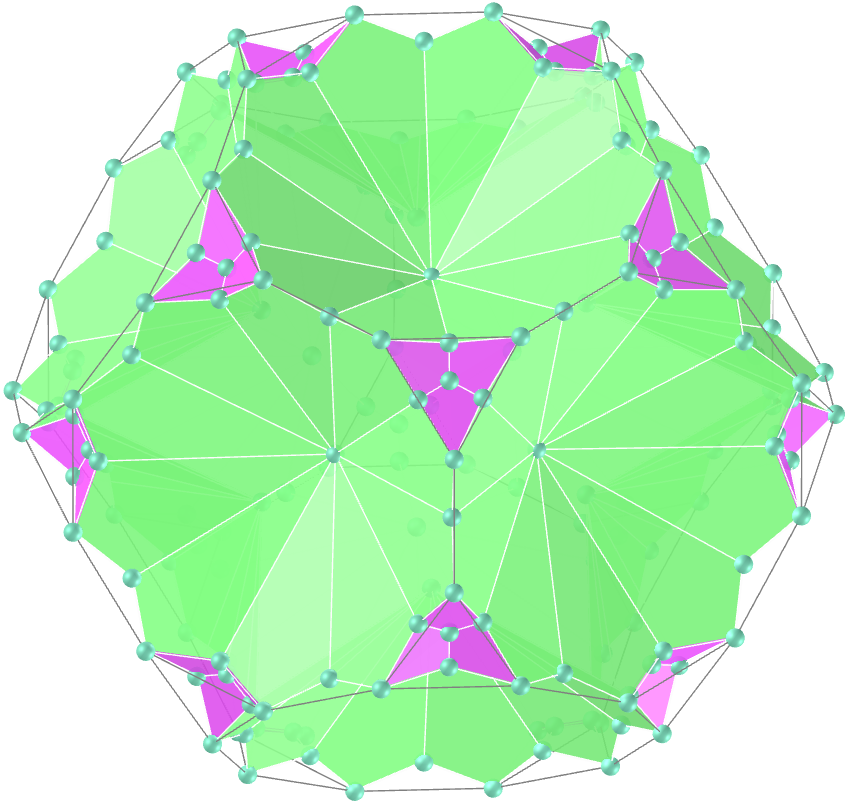

Truncated Dodecahedron star kites
Truncated dodecahedron star kites.
faces: 180 | edges: 270 | vertices: 182

15. Truncated Icosahedron

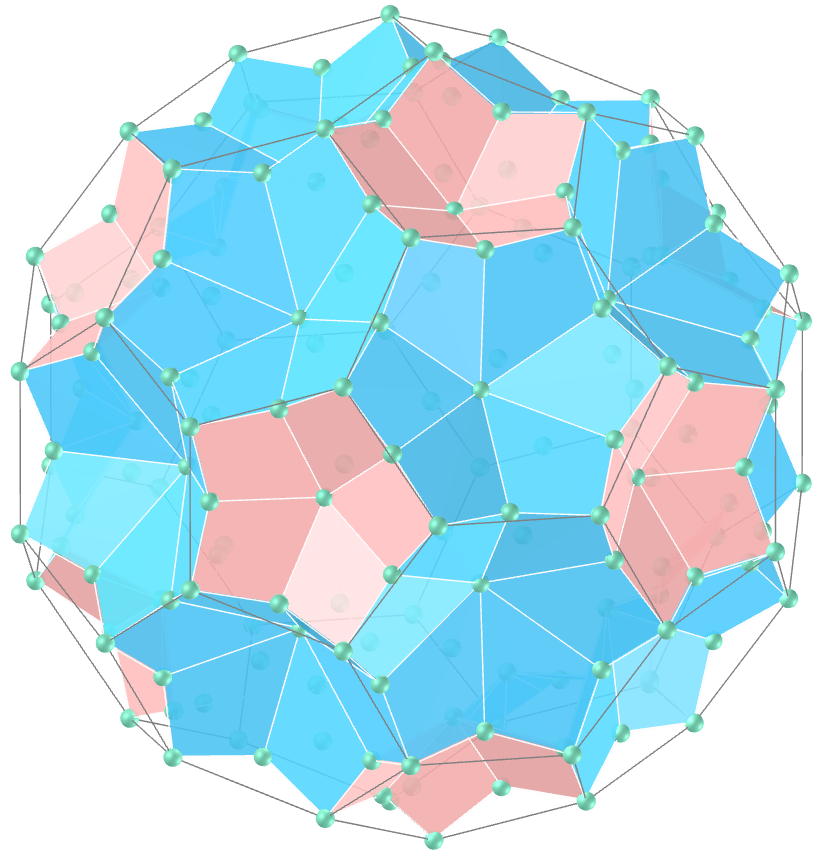

Truncated Icosahedron star kites
Truncated icosahedron star kites.
faces: 180 | edges: 270 | vertices: 182

16. Truncated Icosidodecahedron

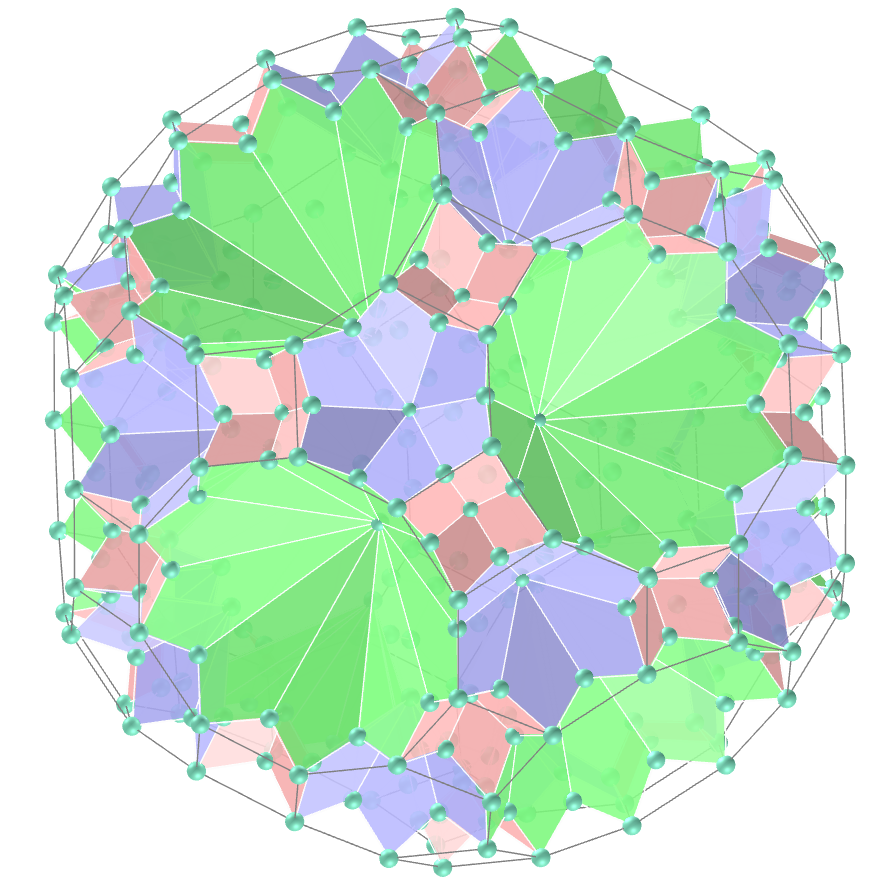

Truncated Icosidodecahedron star kites
Truncated icosidodecahedron star kites.
faces: 360 | edges: 540 | vertices: 362

17. Truncated Octahedron

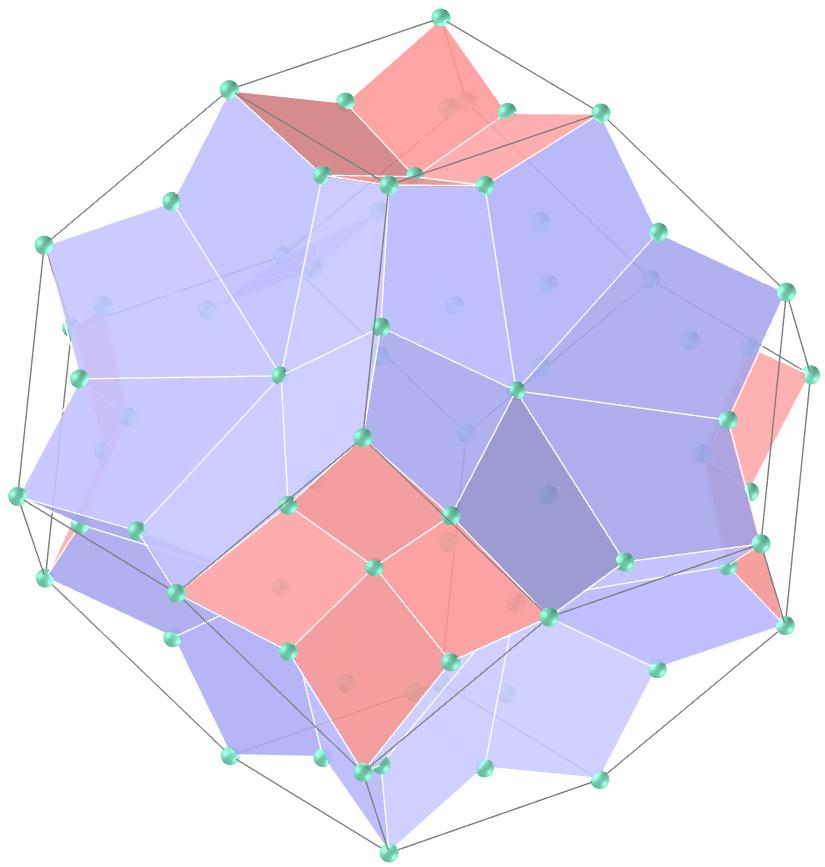

Truncated octahedron star kites
Truncated octahedron star kites.
faces: 72 | edges: 108 | vertices: 74

18. Truncated Tetrahedron

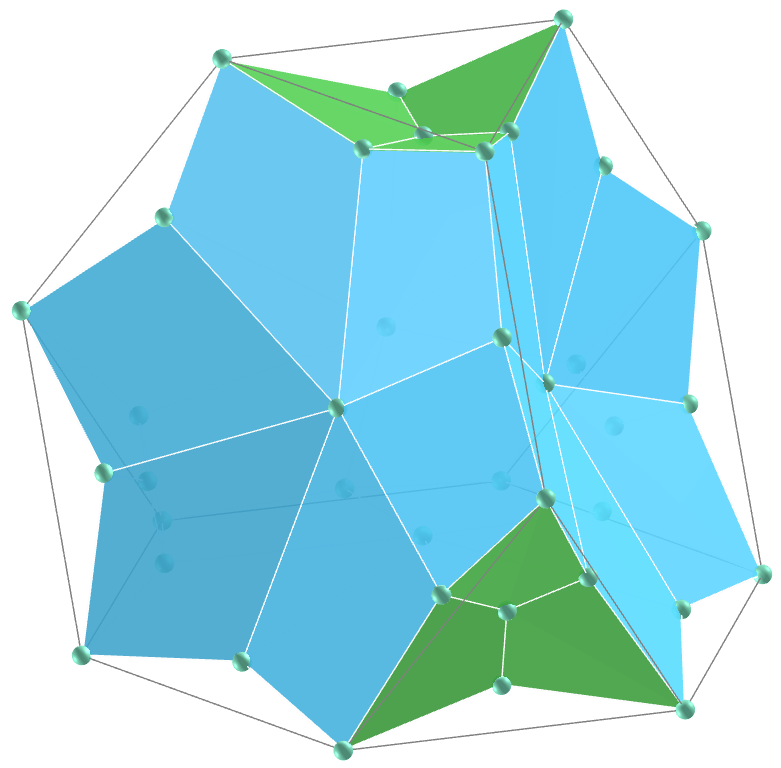

Truncated Tetrahedron star kites
Truncated tetrahedron star kites.
faces: 36 | edges: 54 | vertices: 38

back to top


Licença Creative Commons
Star kites: polyhedra and visualization with Virtual Reality by Paulo Henrique Siqueira is licensed with a license Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International.

How to cite this work:

Siqueira, P.H., "Star kites: polyhedra and visualization with Virtual Reality". Available in: <https://paulohscwb.github.io/polyhedra3/kites/>, June 2025.



References:
Weisstein, Eric W. “Archimedean Solid” From MathWorld-A Wolfram Web Resource. http://mathworld.wolfram.com/ArchimedeanSolid.html
McCooey, D. I. “Visual Polyhedra”. http://dmccooey.com/polyhedra/
